Hello Triangle

Hello Triangle is the smallest complete graphics workload in the series. It uploads three colored vertices, compiles one vertex and one fragment entry point, creates a graphics pipeline, and records a single draw into the swap-chain texture.

This guide focuses on how vertex data moves from C# through a Zenith.NET pipeline into Slang. The shared window, command submission, and presentation loop come from Application Host.

Result

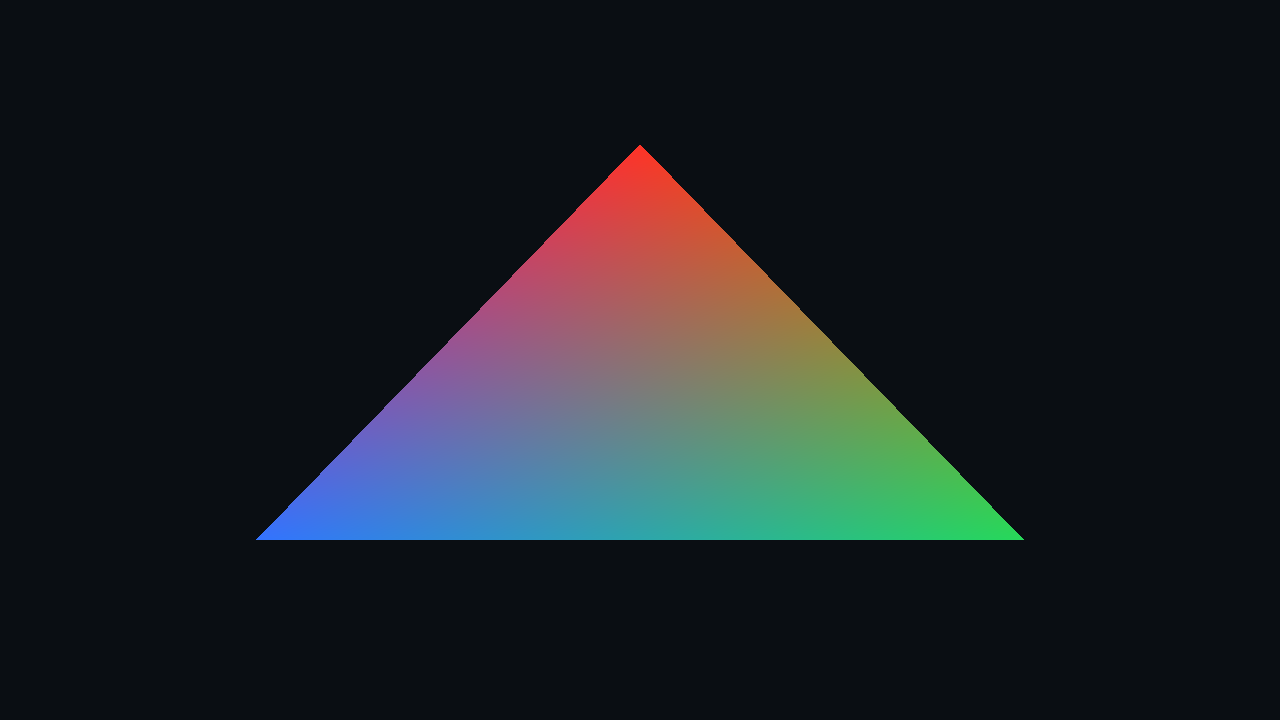

The final image is one triangle on a dark clear color. Red, green, and blue values are supplied per vertex and interpolated by the rasterizer across the covered fragments.

Frame overview

The renderer creates its long-lived resources once. Each frame then records one render pass:

flowchart LR
    A[Drawable in ColorAttachment] --> B[Begin render pass and clear]
    B --> C[Bind graphics pipeline]
    C --> D[Bind vertex buffer]
    D --> E[Draw 3 vertices]
    E --> F[End render pass]

The host transitions the drawable into ColorAttachment before calling the renderer and transitions it to Present afterward.

Resource map

Resource	Created from	Consumed by
Vertex buffer	Three Vertex values	Vertex input stage
Vertex shader	VSMain in HelloTriangle.slang	Graphics pipeline
Fragment shader	FSMain in HelloTriangle.slang	Graphics pipeline
Graphics pipeline	Shaders, input layout, attachment format, render state	Draw command
Swap-chain drawable	Application host	Color attachment

There is no index buffer, constant buffer, depth attachment, or descriptor handle in this first workload.

Data contract

The CPU vertex stores a three-component position followed by a four-component color:

[StructLayout(LayoutKind.Sequential)]
file struct Vertex(Vector3 position, Vector4 color)
{
    public Vector3 Position = position;

    public Vector4 Color = color;
}

The corresponding Slang input uses matching attribute types and semantic names:

struct VSInput
{
    float3 Position : POSITION0;

    float4 Color : COLOR0;
};

An InputLayout connects the buffer fields to those semantics:

InputLayout inputLayout = new();
inputLayout.Add(new() { Format = ElementFormat.Float3, Semantic = ElementSemantic.Position });
inputLayout.Add(new() { Format = ElementFormat.Float4, Semantic = ElementSemantic.Color });

The layout order matches the C# field order. App.LoadBuffer supplies sizeof(Vertex) as the buffer stride, so the GPU advances by one complete position-and-color record for each vertex.

Create the vertex buffer

The renderer defines three positions directly in clip space. Their colors become the three corners visible in the result:

Vertex[] vertices =
[
    new(new(0.0f, 0.6f, 0.0f), new(1.0f, 0.2f, 0.15f, 1.0f)),
    new(new(0.6f, -0.5f, 0.0f), new(0.15f, 0.85f, 0.35f, 1.0f)),
    new(new(-0.6f, -0.5f, 0.0f), new(0.2f, 0.45f, 1.0f, 1.0f))
];

vertexBuffer = App.LoadBuffer(vertices, BufferUsages.Vertex);

BufferUsages.Vertex declares that later commands will bind this allocation as vertex input. Because the coordinates already lie in clip space, the workload does not need model, view, or projection matrices.

Shader interface

The vertex shader converts each float3 position into homogeneous clip-space coordinates and forwards the color:

struct FSInput
{
    float4 Position : SV_POSITION;

    float4 Color : COLOR0;
};

[shader("vertex")]
FSInput VSMain(VSInput input)
{
    FSInput output;
    output.Position = float4(input.Position, 1.0);
    output.Color = input.Color;

    return output;
}

SV_POSITION is consumed by rasterization. COLOR0 is a user varying: the rasterizer interpolates it, then supplies the interpolated value to the fragment shader.

[shader("fragment")]
float4 FSMain(FSInput input) : SV_TARGET
{
    return input.Color;
}

SV_TARGET marks the returned value as the color written to the active color attachment.

Create the pipeline

Compile both named entry points and create the graphics pipeline:

using Shader vertexShader = App.LoadShader("HelloTriangle.slang", "VSMain");
using Shader fragmentShader = App.LoadShader("HelloTriangle.slang", "FSMain");

pipeline = App.Context.CreateGraphicsPipeline(new()
{
    VertexShader = vertexShader,
    FragmentShader = fragmentShader,
    InputLayouts = [inputLayout],
    PrimitiveTopology = PrimitiveTopology.TriangleList,
    AttachmentFormats = new()
    {
        ColorFormats = [App.ColorFormat],
        SampleCount = SampleCount.Count1
    },
    RenderState = new()
    {
        Rasterizer = RasterizerState.CullNone(),
        DepthStencil = DepthStencilState.DepthNone(),
        Blend = BlendState.Opaque()
    }
});

The attachment format must match the swap chain. A triangle list consumes every group of three vertices as one triangle. Culling and depth testing are unnecessary because this workload has one two-dimensional primitive and no depth attachment.

The using declarations limit the temporary Shader objects to pipeline creation.

Record the frame

The render method clears the drawable, binds the two resources required by the draw, and emits one triangle:

public void Render(CommandBuffer commandBuffer, Texture drawable)
{
    commandBuffer.BeginRenderPass([ColorAttachment.Clear(drawable, new(0.04f, 0.055f, 0.075f, 1.0f))], null);

    commandBuffer.SetPipeline(pipeline);
    commandBuffer.SetVertexBuffer(vertexBuffer, 0, 0);

    commandBuffer.Draw(3, 1, 0, 0);

    commandBuffer.EndRenderPass();
}

The arguments to Draw request three vertices, one instance, first vertex zero, and first instance zero. No explicit viewport or scissor is needed here; the render pass uses the drawable dimensions.

Resource lifetime

This renderer has no animated or size-dependent resources, so Update and Resize remain empty. Dispose both renderer-owned resources after the final submitted frame has completed:

public void Dispose()
{
    pipeline.Dispose();
    vertexBuffer.Dispose();
}

Inspect the result

Run the tutorial host and select Hello Triangle. Confirm that:

• the triangle appears centered on the dark background;
• all three corner colors are visible and interpolate smoothly;
• resizing the window preserves the workload without recreating resources;
• the validation layer reports no errors.

If the pipeline is rejected, first compare App.ColorFormat with AttachmentFormats.ColorFormats. If geometry is missing or corrupted, compare the C# field order, InputLayout, and Slang semantics.

Explore further

Try these changes independently:

1. Change the x and y components while keeping them in \([-1,1]\); leave z at 0 so the vertices remain in the visible depth range.
2. Replace all three colors with one constant color and observe that interpolation no longer produces a gradient.
3. Reverse two vertices and enable back-face culling to inspect how winding affects visibility.
4. Add a fourth vertex and change the topology to explore how a triangle list groups input vertices.

Complete source

• HelloTriangleRenderer.cs
• HelloTriangle.slang

Continue with Spinning Cube to add indexed geometry, transformation constants, back-face culling, and a depth attachment.
